Intelligent Lifepo4 Battery Module 48V100Ah For Telecommunication Backup Battery

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

पैकेजिंग विवरण:

लकड़ी के बक्से में पैक किए गए खतरनाक सामान

आपूर्ति की क्षमता:

2000000 पीसी प्रति वर्ष

प्रमुखता देना:

उत्पाद वर्णन

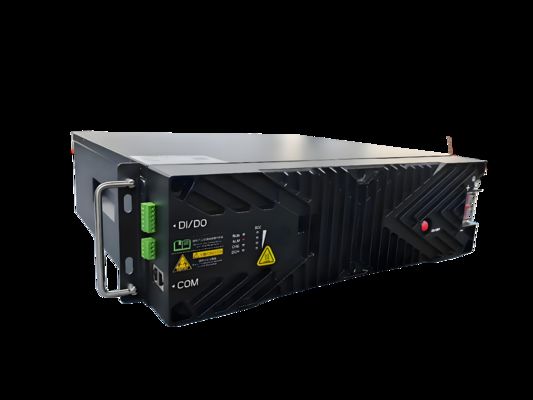

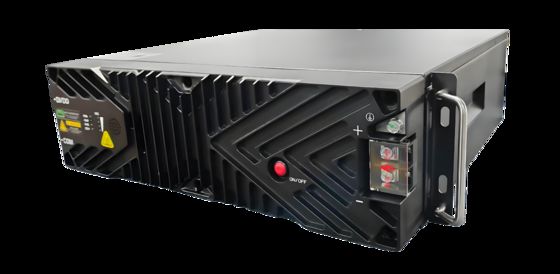

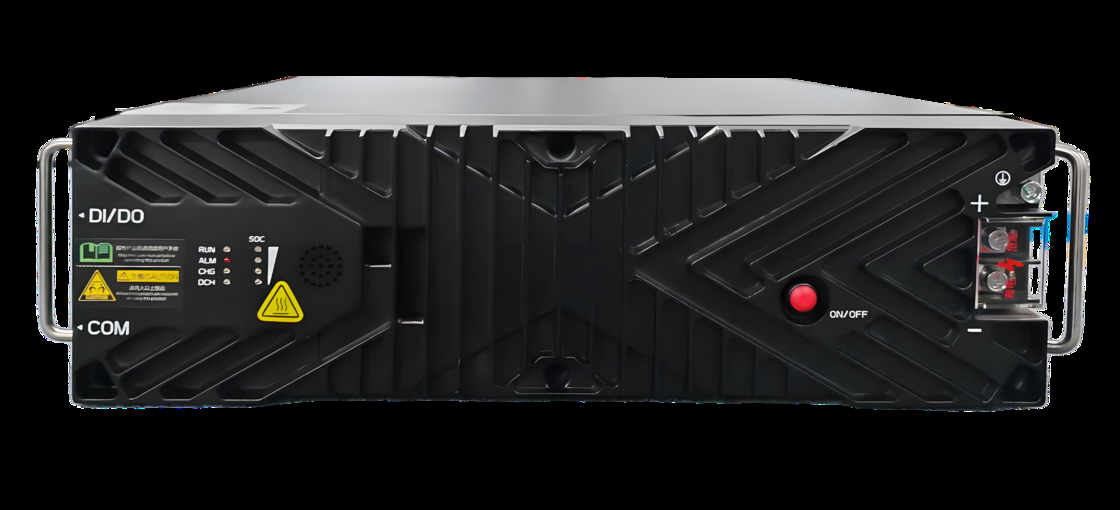

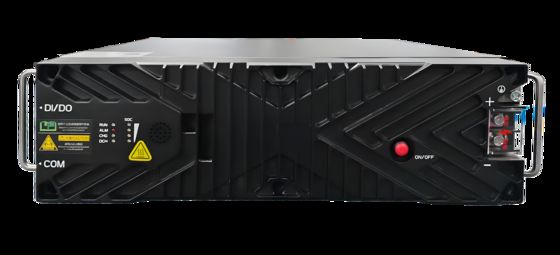

Intelligent Lifepo4 Battery Module 48V100Ah For Telecommunication Backup Battery

Basic Parameters

Model	GBSFP48100S
Cell type	Laminated lithium iron phosphate batteries
Nominal voltage	-48V
Nominal capacity	100Ah
Cell specification	3.2V/100Ah
Battery pack mode	15 cell batteries (15s) + BMS + rack or iron frame general purpose case
Battery pack Dimensions	Width442(without hanger )×depth415×height133(mm)
Weight	40kg
Working temperature	Charging:0~55℃；discharging:-20～55℃
Storage temperature	-40～60℃
Operating relative humidity	5~95%(No condensation)
Work at an altitude of	0～3600m
Working atmospheric pressure	70kpa-106kpa

Protection Parameter Settings

Item	Default state	Can set up or not	Detailed content	Set value
Single overcharge protection	Open	Yes	Single overcharge detection voltage	3.6V

Functional Features

Voltage detection and protection function: Has individual voltage and overall voltage detection, overvoltage and undervoltage alarm and protection functions.
Current detection and protection function: Has functions of charging and discharging current detection, alarm, and protection.
Temperature detection and protection function: Has battery cell and environmental temperature detection functions.
Short circuit protection function: BDC has the function of detecting and protecting against output short circuits.
Battery pack capacity calculation function: The SOC of the battery pack can be calculated.
Balance function: Balance management can be performed on the cells in the battery pack.

Application Scenarios

Backup power in small and medium-sized data center and IDC room
